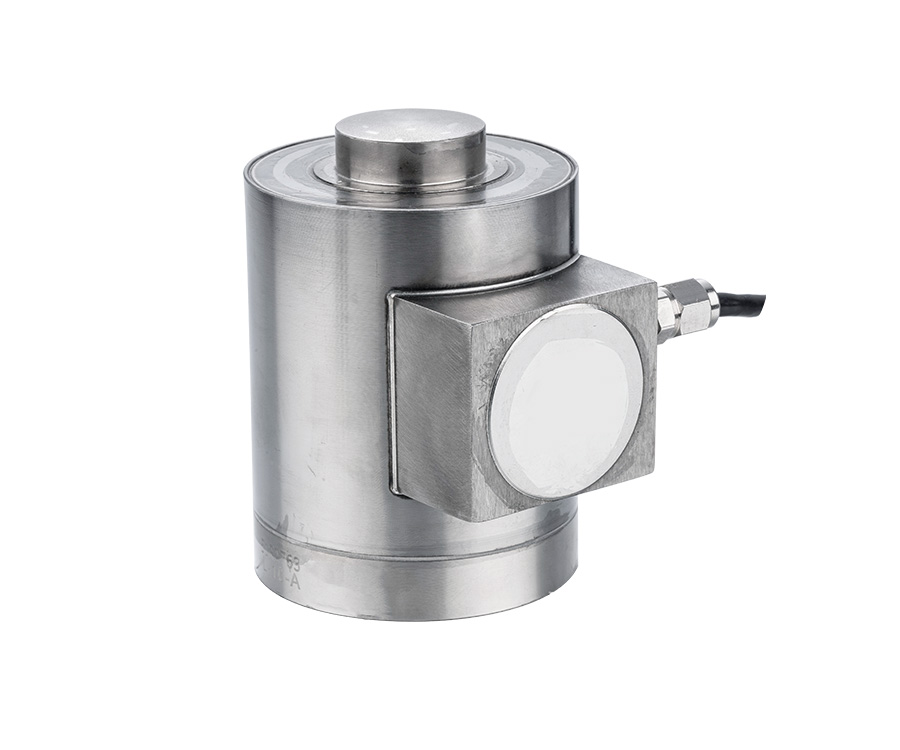

柱型传感器
型号/品名：ZSL
汽车衡、轨道衡、轴重称、地上衡Truck scales, railway scales, Axle load scale, ground scaleTECHNICAL PARAMETER4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
应用范围
Railway scale
Truck scale
汽车衡
轨道衡
受力示意图
汽车衡、轨道衡、轴重称、地上衡
Truck scales, railway scales, Axle load scale, ground scale
TECHNICAL PARAMETER
4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
产品参数表
| 额定载荷 Rated load | H | A | B | C | D | E | F |
| 1、2、3、5 | 88 | 70 | 64 | 38 | 26 | 78 | 80 |
| 10 | 106 | 89 | 76 | 48 | 34 | 95 | 120 |
| 15、20 | 130 | 108 | 88 | 56 | 34 | 116 | 120 |

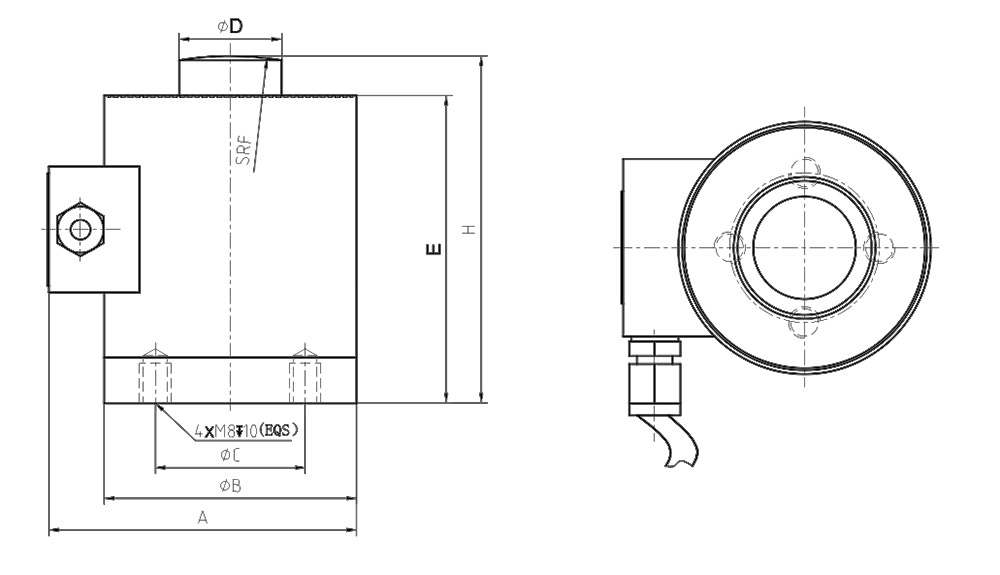

产品尺寸图
| 额定载荷Rated load | 1、2、3、5、10、15、20t | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 灵敏度 Sensitivity | 2.0±0.005mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 综合误差 Total error | ±0.1%F.S | 安全负载 Safe load limit | 120%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.05%F.S | 破坏负载 Breaking laod | 150%F.S |
| 零点平衡 Zero balance | ±1%F.S | 额定激励电压 Nominal of range excitation | 10~12VDC |
| 零点温度影响 TC ZERO | ±0.05%F.S/10°C | 最大激励电压 Maximum excitation | 16VDC |
| 灵敏度温度影响 TC SPAN | ±0.05%F.S/10°C | 密封等级 Protection Class | IP67 |
| 输入阻抗 Input resistance | 400±20Ω | 材料 Material | 合金钢Alloy Steel |
| 输出阻抗 Output resistance | 352±3Ω | 电缆Cable | Length=3m Diameter: Ø 5mm |
