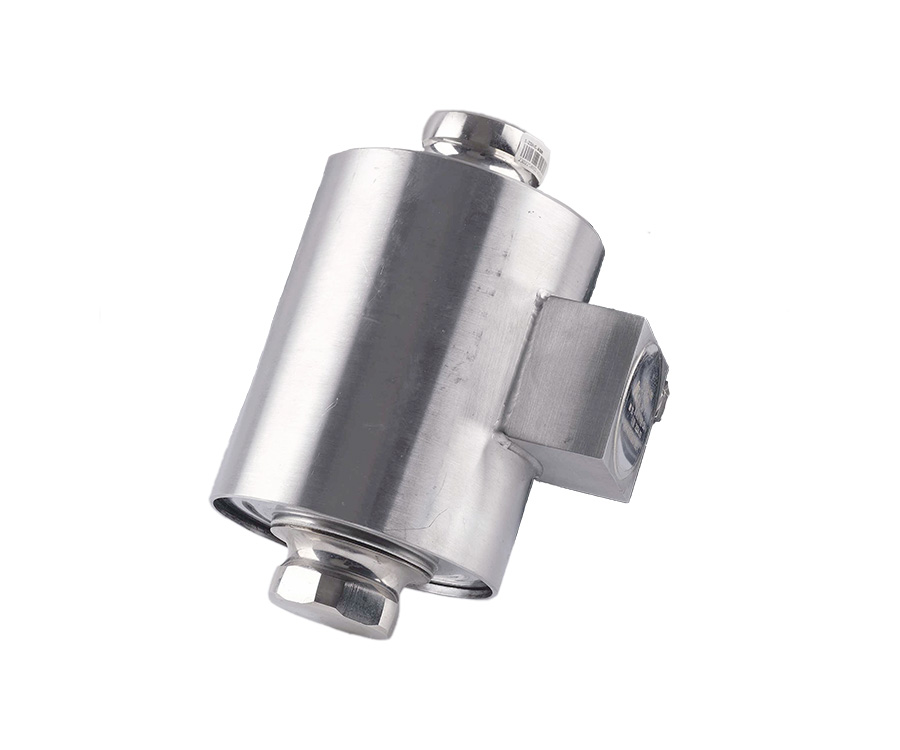

柱型传感器
型号/品名：ZSNC
汽车衡、轨道衡、配料秤及各种专用衡器Truck scales, railway scales, blending scales, and special scalesWires;Sen+(蓝，Bule)；Sin+(白，White);Exc-(黑，Black);Sig-(红，Red)
受力示意图
汽车衡、轨道衡、配料秤及各种专用衡器
Truck scales, railway scales, blending scales, and special scales
Wires;Sen+(蓝，Bule)；Sin+(白，White);Exc-(黑，Black);Sig-(红，Red)

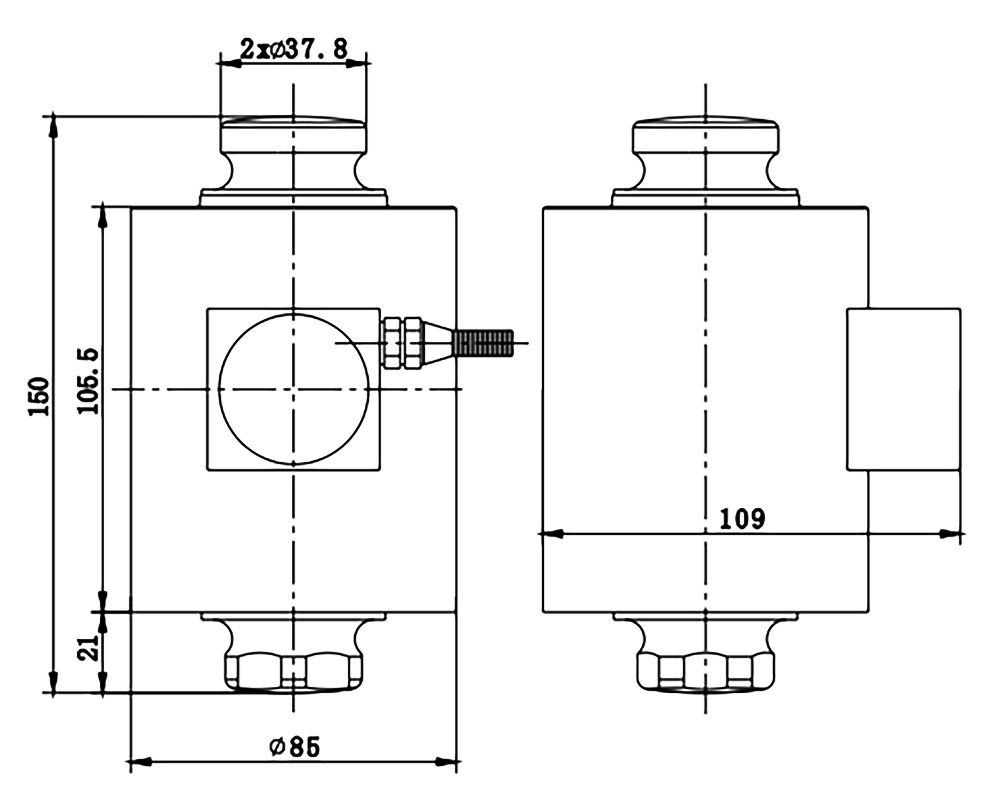

产品尺寸图
| 额定载荷Rated load | 20、25、30、40、50t | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 精度等级 Accuracy class | 0.03, 0.05 | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 2.0±0.002mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.03%F.S, ±0.05%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.03%F.S, ±0.05%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.02%F.S/10°C | 密封等级 Protection Class | IP68 |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C | 材料 Material | 合金钢Alloy Steel 不锈钢stainless steel |
| 输入阻抗 Input resistance | 1160±10Ω | 电缆Cable | Length: 20~25t; 12m, 30t; 14m, 40~50t; 16m Diameter: Ø 6 mm |
| 输出阻抗 Output resistance | 1005±5Ω | ||
