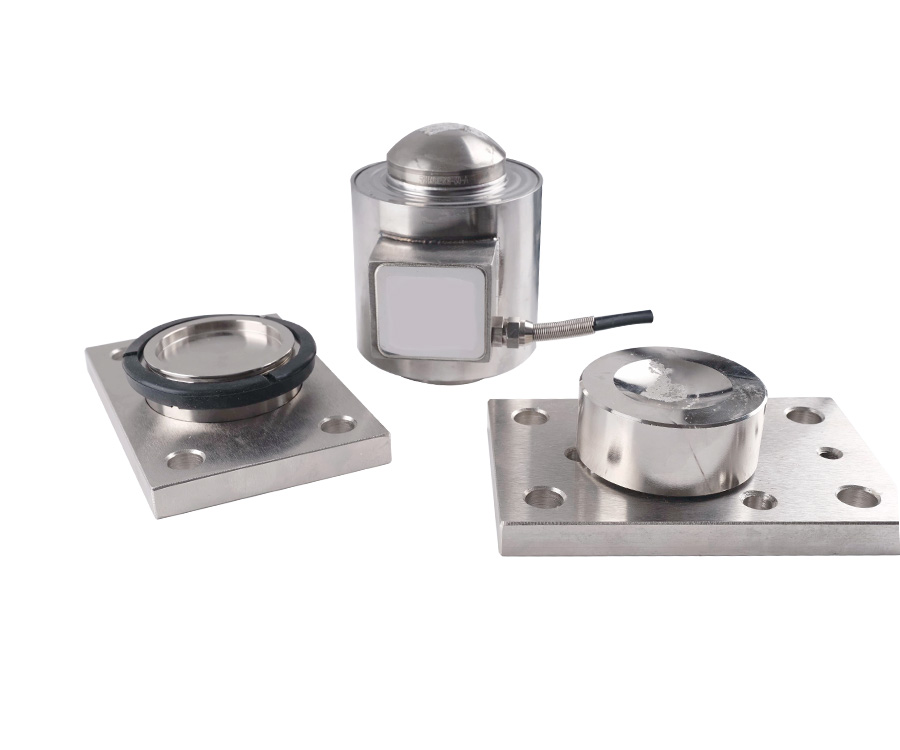

柱型传感器
型号/品名：ZSKB
罐装秤、料斗称Canned scale, hopper scale6Wires;Exc+(红，Red)；Exc-(黑，Black)；Slg+(绿，Green)；Sig-(白，White)；Sen+(蓝，Blue)；Sen-(黄，Yellow)
罐装秤、料斗称
Canned scale, hopper scale
6Wires;Exc+(红，Red)；Exc-(黑，Black)；Slg+(绿，Green)；Sig-(白，White)；Sen+(蓝，Blue)；Sen-(黄，Yellow)

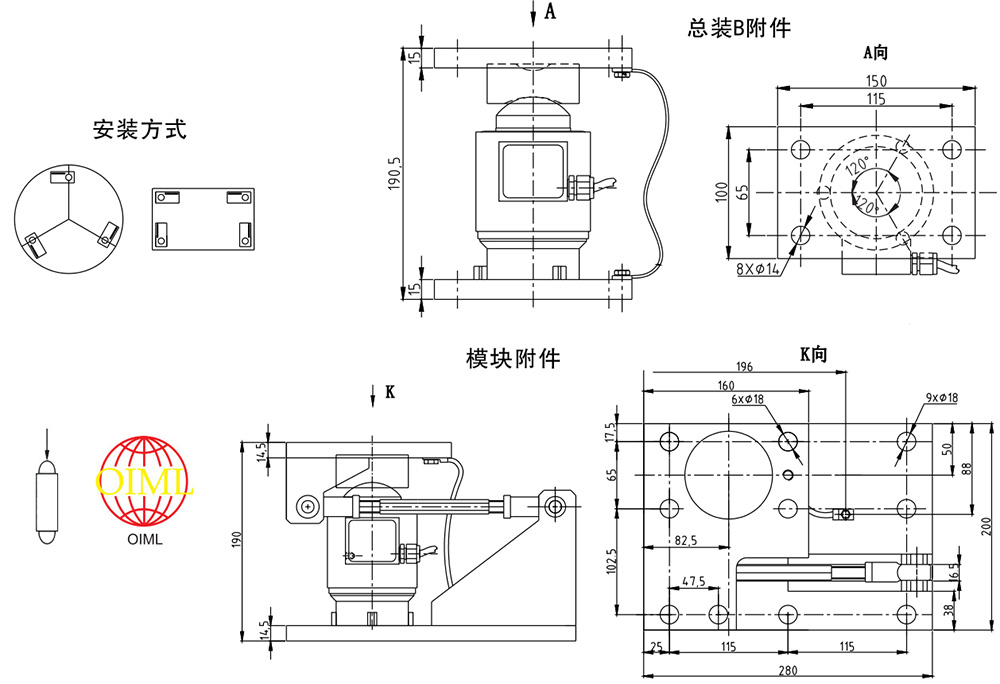

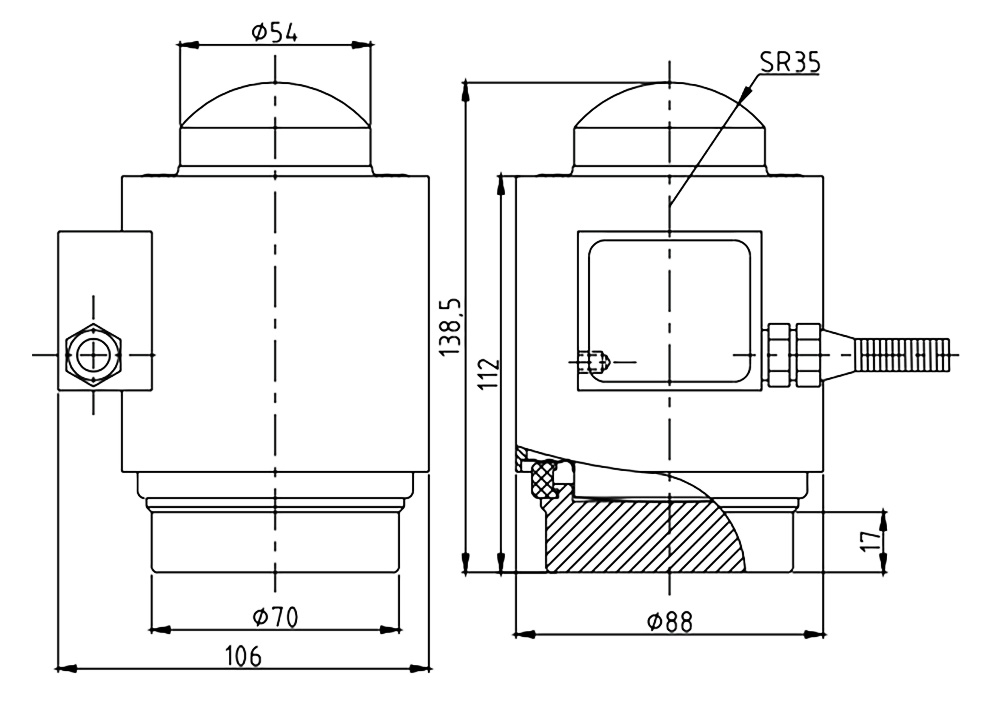

产品尺寸图
| 额定载荷Rated load | 10、15、20、25、30、40、50t | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 精度等级 Accuracy class | 0.05 | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 1.0±0.002mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.05%F.S | 安全负载 Safe load limit | 180%F.S |
| 滞后误差 Hysteresis error | ±0.05%F.S | 破坏负载 Breaking laod | 300%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.03%F.S/10°C | 密封等级 Protection Class | IP67 |
| 灵敏度温度影响 TC SPAN | ±0.03%F.S/10°C | 材料 Material | 合金钢Alloy Steel 不锈钢stainless steel |
| 输入阻抗 Input resistance | 650±10Ω | 电缆Cable | Length: 14m |
| 输出阻抗 Output resistance | 610±3Ω | ||
