单点式传感器

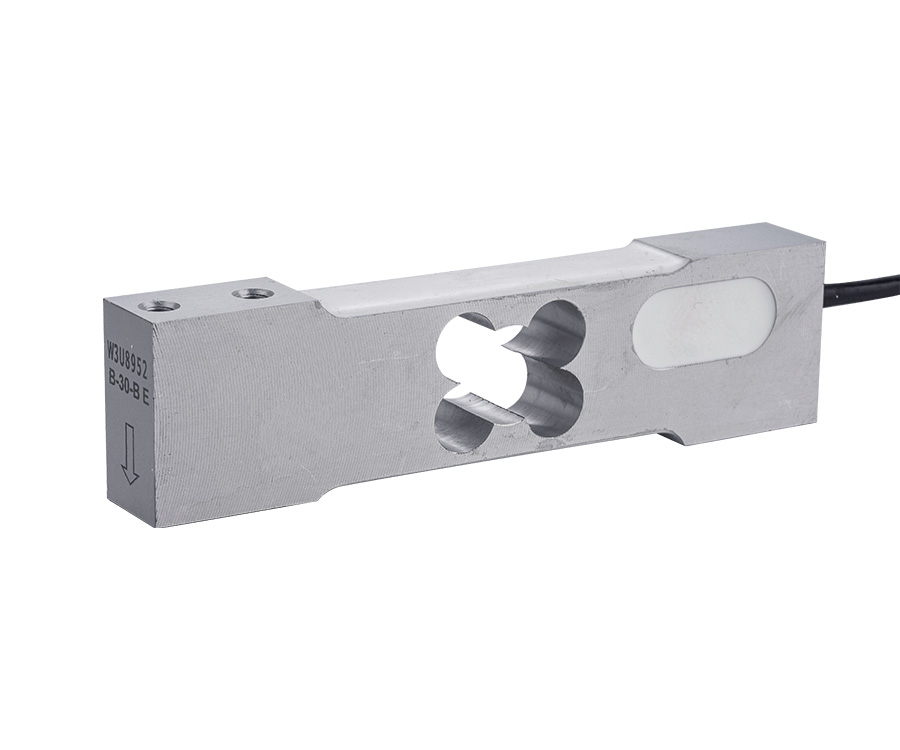

型号/品名：AMIB
各种台秤、案秤Various platform scales and case scales4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
应用范围
Platform scale
产品认证
各种台秤、案秤
Various platform scales and case scales
4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
产品参数表
| 额定载荷(kg) Rated load | 8~30 | 50~200 |
| A | 20 | 25 |

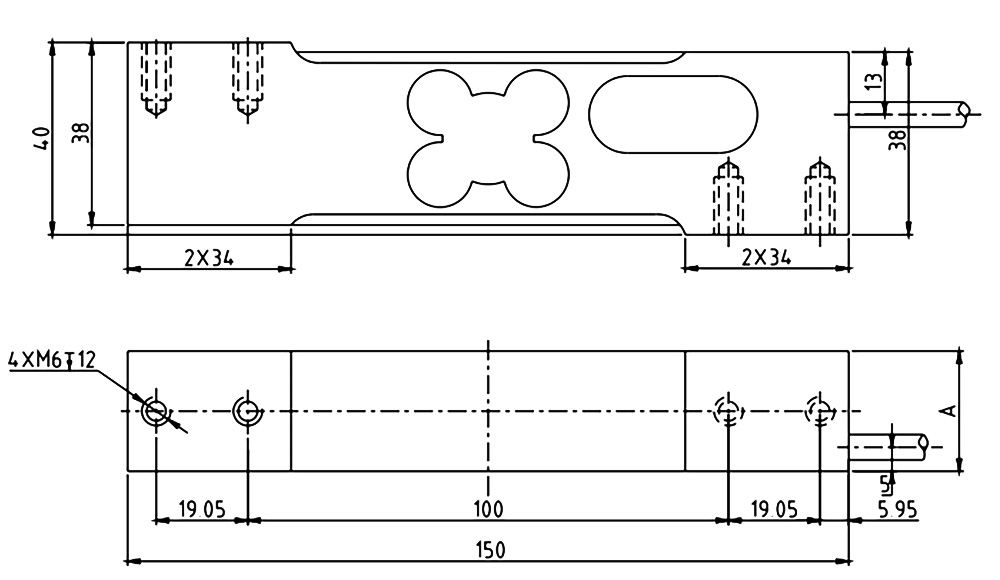

产品尺寸图
| 额定载荷Rated load | 5、6、8、10、15、20、30、35、40kg | 绝缘电阻 Insulation resistance | ≥ 2000MΩ |
| 精度等级 Accuracy class | C3 | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 2.0±0.2mV/V | 工作温度范围 Service Temp Range | -20~+60°C |
| 线性误差 Non-linearity | ±0.02%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.02%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.02%F.S/10°C | 密封等级 Protection Class | IP65 |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C | 材料 Material | 铝合金 Aluminium |
| 输入阻抗 Input resistance | 404±15Ω | 电缆 Cable | Length: 1.8m |
| 输出阻抗 Output resistance | 350±3Ω | 推荐最大安装台面 Max platform size | 300x400mm |
