型号/品名：NHS
轴重秤、料斗秤、仓储秤、罐体秤Axle scale, hopper scale, storage scale, tank scaleWires;Sen+(蓝，Blue)；Sin+(白，White);Exc-(黑，Black);Sig-(红，Red)
应用范围
Hopper scale
料斗秤
仓储秤
产品认证
轴重秤、料斗秤、仓储秤、罐体秤
Axle scale, hopper scale, storage scale, tank scale
Wires;Sen+(蓝，Blue)；Sin+(白，White);Exc-(黑，Black);Sig-(红，Red)
产品参数表
| Dimension Capacity | A | B | C | H | K | J |
| 10/15/22t | 75 | 30 | 75 | 50 | 7 | 6.5 |
| 33t | 95 | 40 | 95 | 65 | 7 | 10 |
| 47t | 130 | 60 | 130 | 75 | 7 | 14 |
| 68t | 130 | 60 | 130 | 85 | 7 | 14 |
| Dimension Capacity | A | B | C | H | K | J |
| 100t | 150 | 70 | 150 | 90 | 7 | 16 |
| 150t | 150 | 70 | 150 | 100 | 7 | 16 |
| 220t | 225 | 100 | 225 | 130 | 10 | 24 |
| 330t | 225 | 100 | 225 | 145 | 10 | 24 |
| 470t | 270 | 100 | 270 | 170 | 10 | 28 |

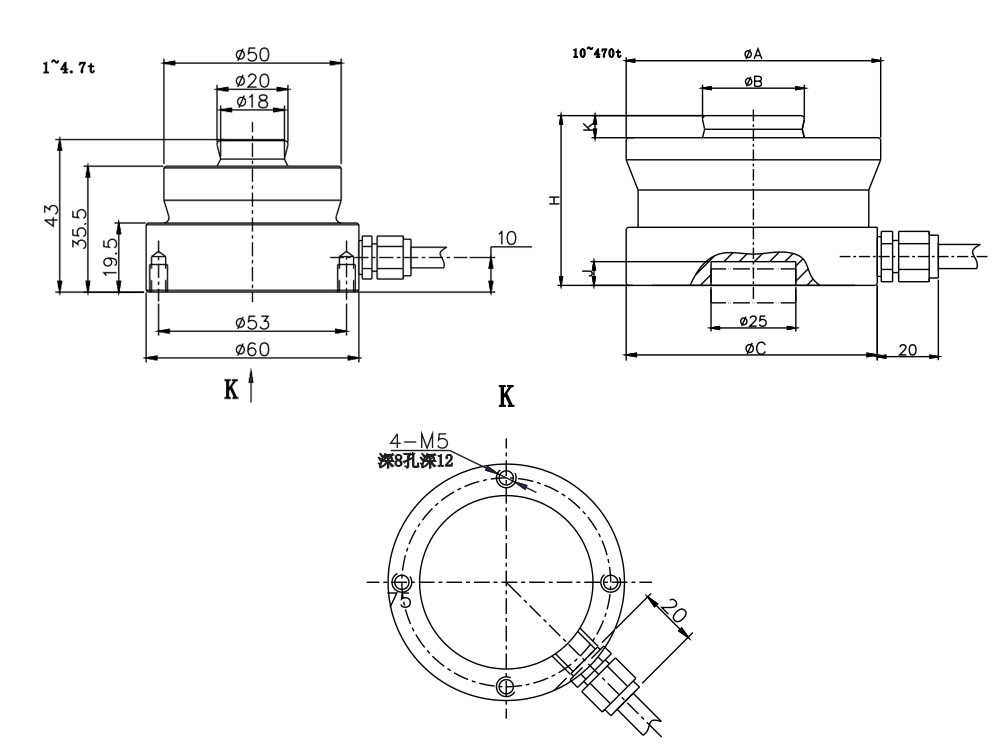

产品尺寸图
| 额定载荷Rated load | 1、2.2、3.3、4.7、10、15、22、23、47、68、100、150、220、330、470t | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 精度等级 Accuracy class | 0.1(1~150t),0.3(220~470t) | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 2.85±0.015mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.1%F.S(1~150t),±0.3%F.S(220~470t) | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.05%F.S(1~150t) | 破坏负载 Breaking laod | 200%F.S |
| 蠕变 (30分钟) Creep(30min) | ±0.03%F.S | 额定激励电压Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.02%F.S/10°C | 密封等级 Protection Class | IP67 |
| 灵敏度温度影响 TC SPAN | ±0.03%F.S/10°C | 材料 Material | 合金钢Alloy Steel不锈钢stainless steel |
| 输入阻抗 Input resistance | 1450±10Ω | 电缆Cable | Length: 8m(1~4.7t)12m(10~33t)16m(68~470t) |
| 输出阻抗 Output resistance | 1450±5Ω | ||
