S型传感器

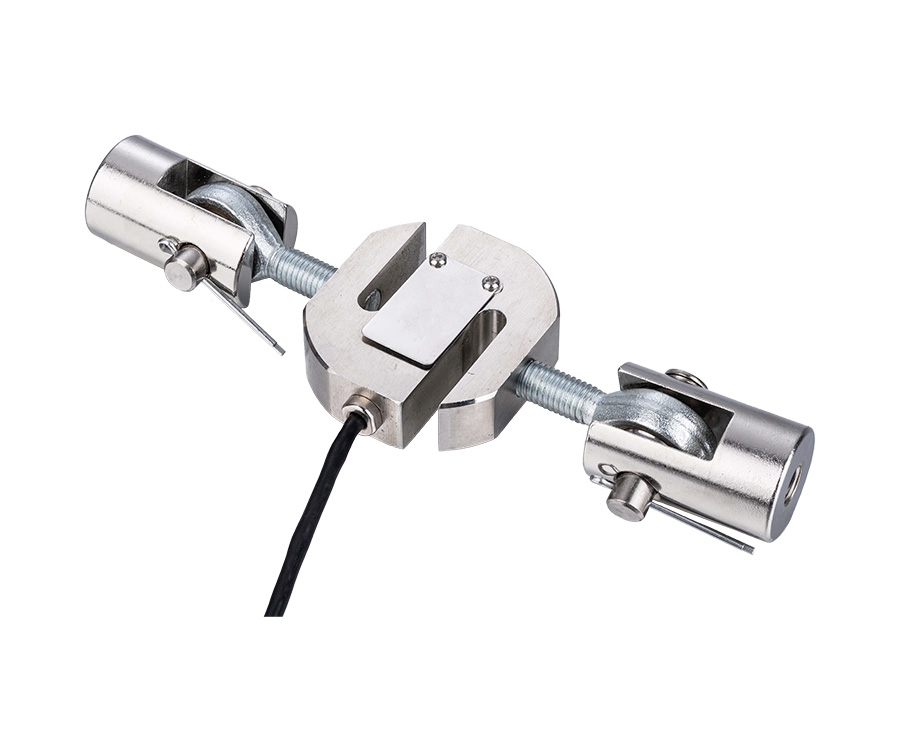

型号/品名：PST总装D
产品参数表
| 额定载荷 Rated load | Lmax | L1max | T1 | T2 | D |
| 20~150kg | 184 | 124 | M8 | M8 | 24 |
| 200~500kg | 228 | 148 | M12 | M12 | 34 |
| 700~1000kg | 228 | 148 | M12 | M12 | 34 |
| 2~5t | 326 | 206 | M20 | M24 | 56 |

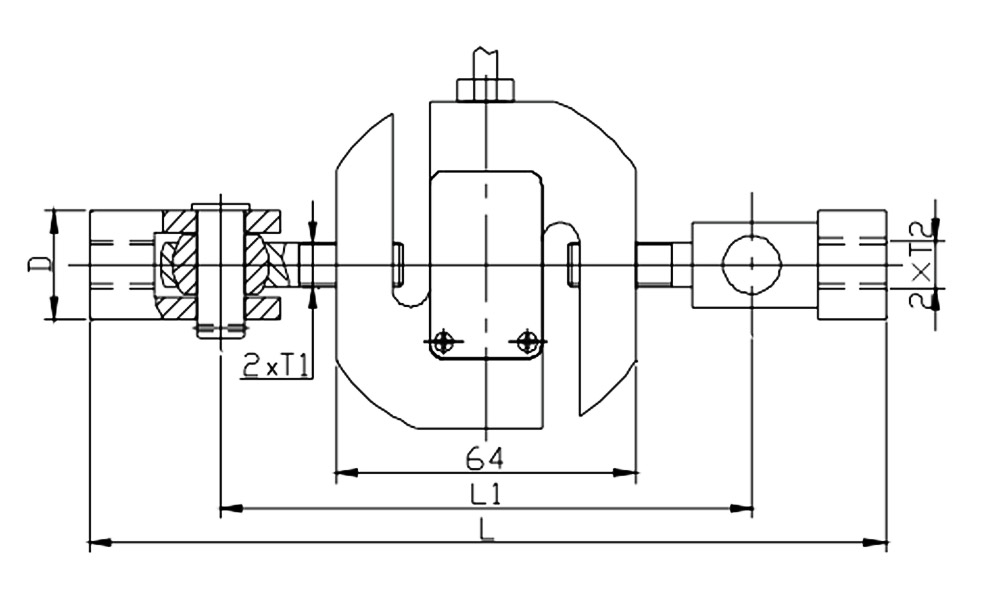

产品尺寸图
| 额定载荷 Rated load | Lmax | L1max | T1 | T2 | D |
| 20~150kg | 184 | 124 | M8 | M8 | 24 |
| 200~500kg | 228 | 148 | M12 | M12 | 34 |
| 700~1000kg | 228 | 148 | M12 | M12 | 34 |
| 2~5t | 326 | 206 | M20 | M24 | 56 |
