※特点：
1、采用高清LCD液晶显示屏，支持kg、lb单位切换。
2、内置可充电电池、实时电量显示。
3、RS485/RS232接口，MODBUS-RTU协议。
4、可选配U盘、打印接口，支持时间序号输出。
5、可选配RJ45网口、WIFI、4G，支持MODBUS-TCP协议。
6、可选配模拟量4-20mA输出、继电器输出、三色灯等。
7、可根据需求定制接口、协议等。
※FEATURES:
1. High-Definition LCD Display: Equipped with a clear LCD screen supporting unit switching between kg and lb.
2. Built-in Rechargeable Battery: Integrated with real-time power level indication.
3. RS485/RS232 Interface: Integrated with MODBUS-RTU protocol for industrial communication.
4. Optional Accessories: Expandable with USB port, printer interface, and timestamp/sequence number output functionality.
5. Network Connectivity Options: Optional RJ45 Ethernet port, WiFi, or 4G module, compatible with MODBUS-TCP protocol.
6. Customizable I/O: Optional analog output (4-20mA), relay output, tri-color indicator light, and more.
7.Tailored Solutions: Supports customization of interfaces and protocols to meet specific requirements.
产品参数表
| L(cm) |
40 |
50 |
60 |
| W(cm) |
30 |
40 |
50 |
| H(cm) |
75 |
75 |
105 |

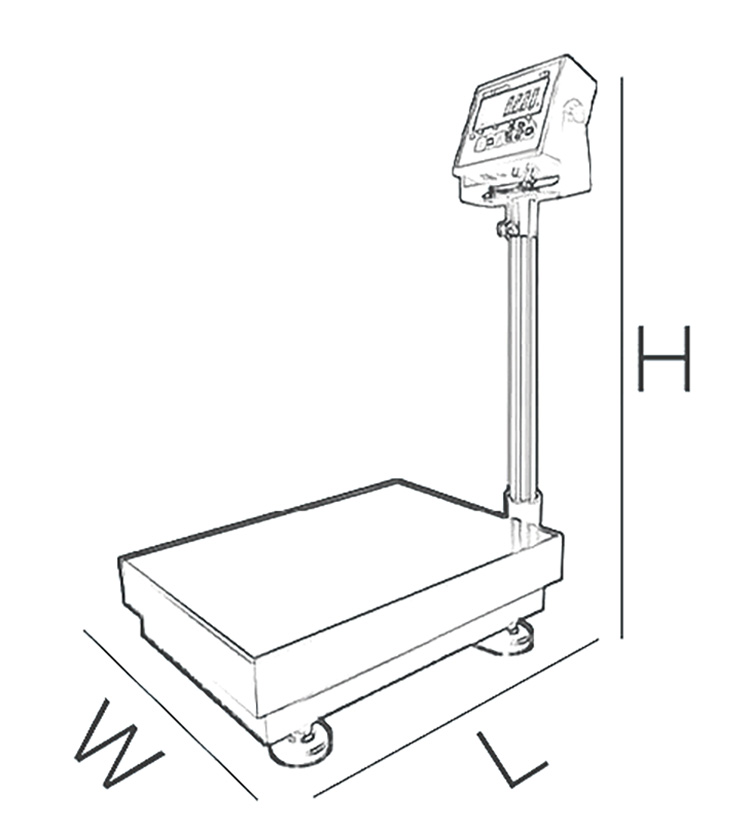

产品尺寸图
| 技术参数 Technical parameter |
| 型号 Model |
TCS. |
| 量程 Capacity |
60kg |
100kg |
200kg |
300kg |
500kg(50*60cm) |
| 可读性 Readability |
1g/10g |
1g/10g |
10g |
10g |
10g/50g |
| 接口 Interface |
RS485、RS232、RJ45(网口Port)、WIFI、4G、4-20mA。 |
| 协议 Protocol |
MODBSU-RTU/TCP、ASCII自由协议 (CustomASCII Protocol)、打印协议 (Printing Protocol) MODBUS-RTU/TCP, ASCII Free Protocol (Custom ASCII Protocol), Printing Protocol |
