称重模块

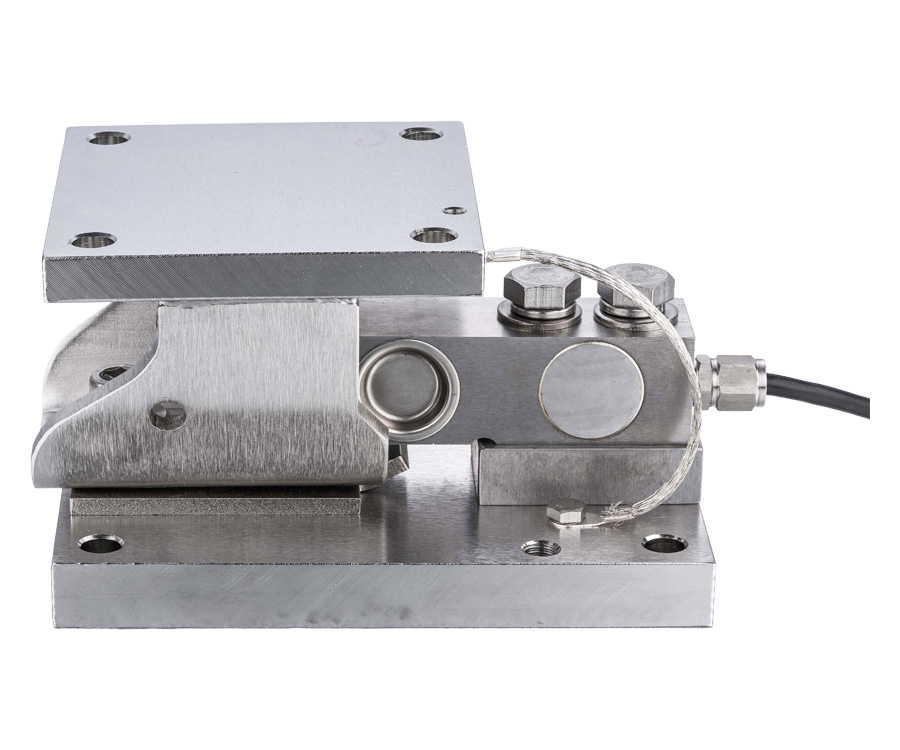

型号/品名：MM模块

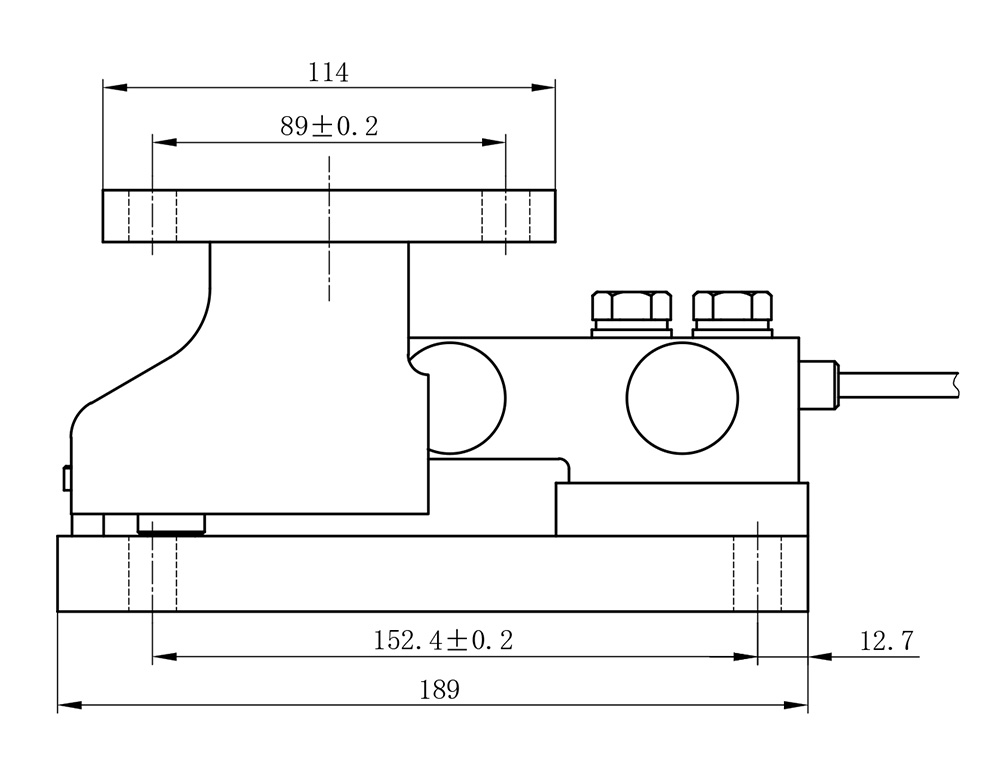

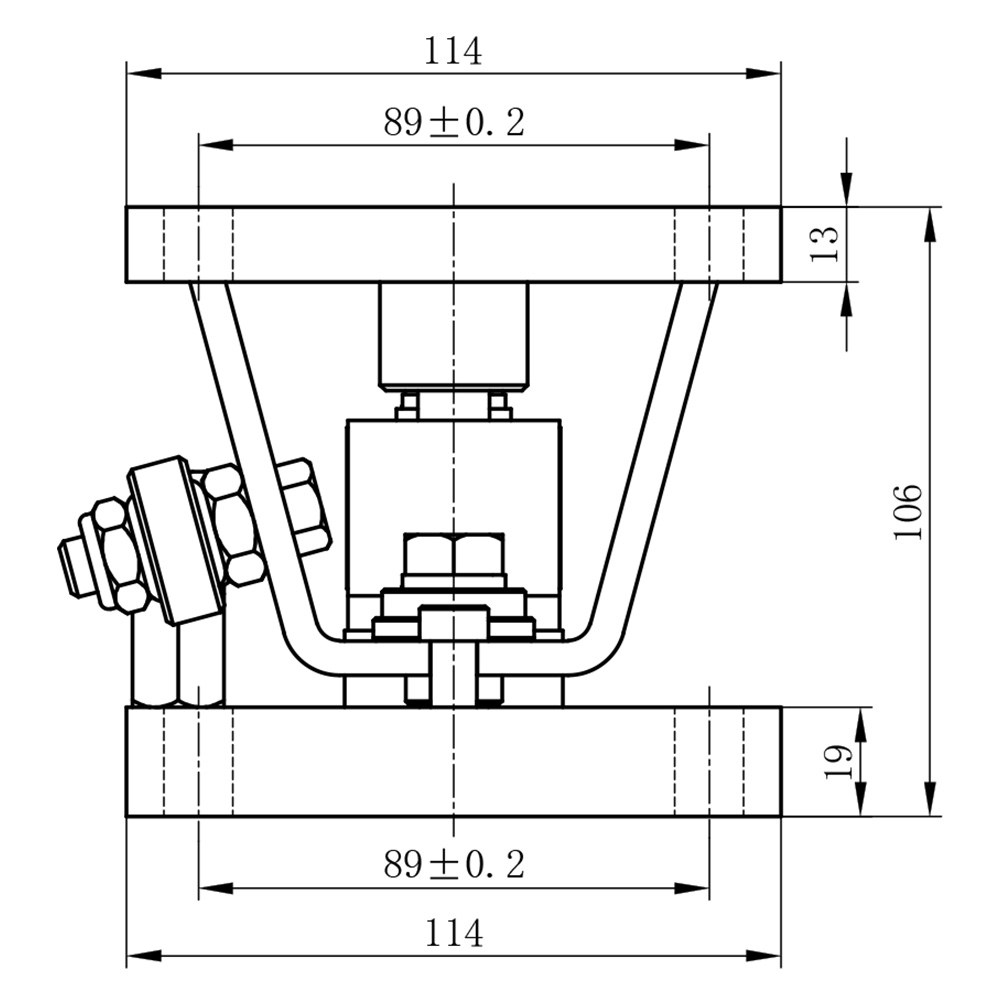

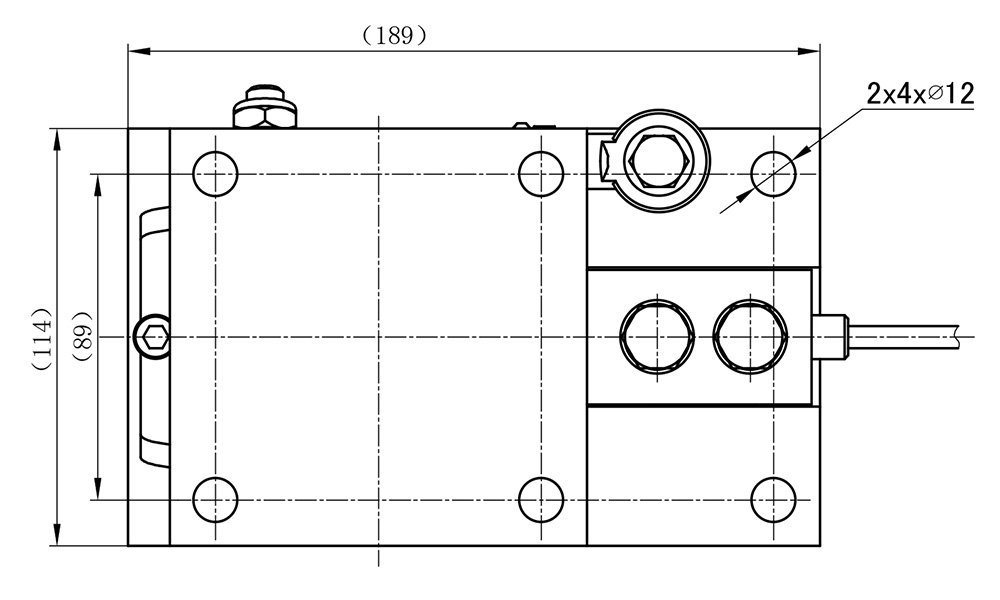

产品尺寸图
| 额定载荷 Rated load | 500kg~2.5t |
| 灵敏度 Sensitivity | 3.0±0.002mV/V |
| 综合误差 Total error | ±0.03%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S |
| 零点平衡 Zero balance | ±1%F.S |
| 零点温度影响 TC ZERO | ±0.15%F.S/10°C |
| 输出温度影响 TC SPAN | ±0.15%F.S/10°C |
| 输入阻抗 Input resistance | 400±20Ω |
| 输出阻抗 Output resistance | 352±3Ω |
| 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 工作温度范围 Service temp range | -20~+65°C |
| 安全过载 Safe load limit | 150%F.S |
| 极限过载 Lateral load limit | 300%F.S |
| 推荐激励电压 Recommend excitation | 5-15 V DC |
| 最大激励电压 Maximum excitation | 20V DC |
| 密封等级 Protection class | IP68 |
| 材料 Material | 合金钢 Alloy Steel不锈钢stainless steel |
| 电缆 Cable | 长度 Length=1.5m/3m |
