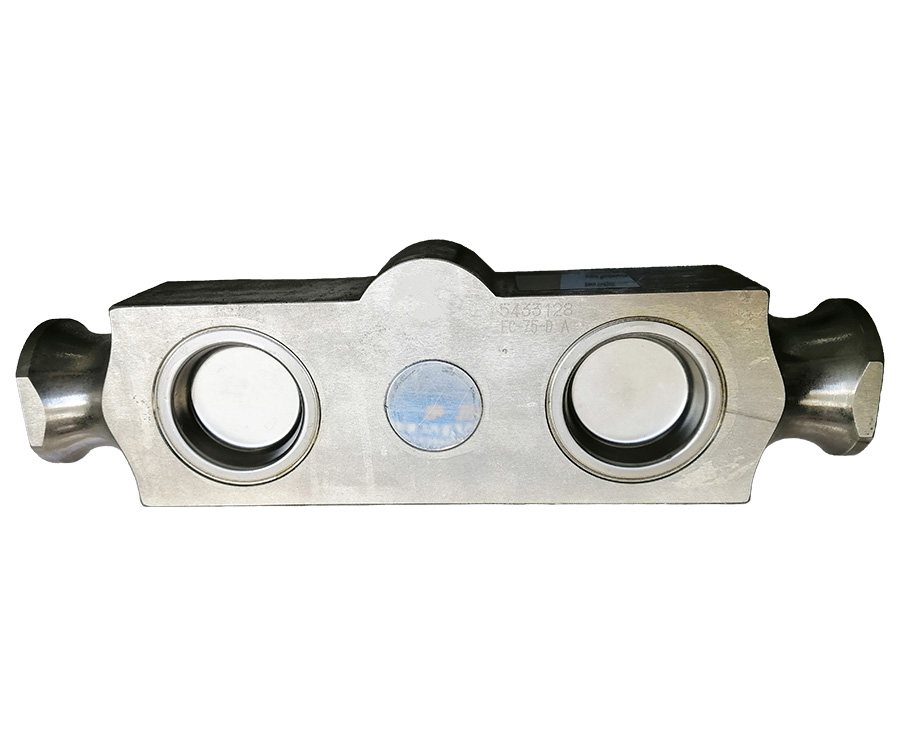

桥式传感器
型号/品名：QSEC

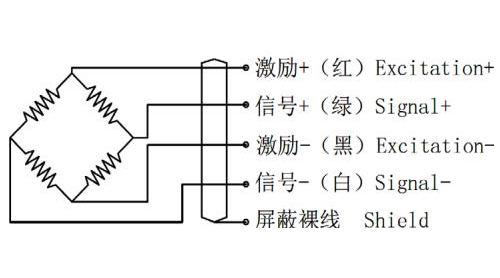

接线示意图
产品参数表
| 量程 (klb) | A | B | C | D | E | F | G | H | J |
| 25~40 | 209.6 | 184 | 49.3 | 62 | 75.5 | R12.7 | R12.7 | Ø41.4 | Ø50.8 |
| 50~75 | 292.1 | 254 | 49.3 | 74.7 | 88.15 | R25.4 | R19.05 | Ø43.2 | Ø55.9 |
| 100~125 | 368.3 | 317.5 | 73.7 | 98 | 118.9 | R38.1 | R25.4 | Ø62 | Ø81.3 |

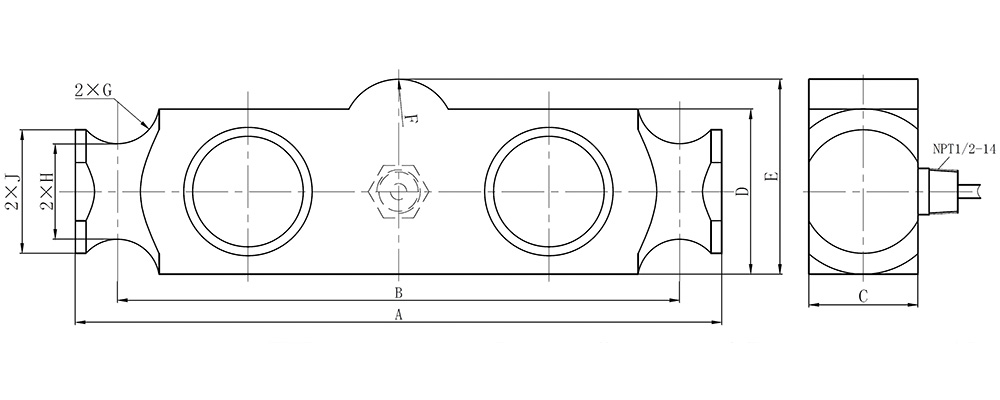

产品尺寸图
| 额定载荷Rated load | 25, 40, 50, 60, 75, 100, 125klb |
| 精度等级 Accuracy class | 0.05 |
| 灵敏度 Sensitivity | 3.0±0.003mV/V |
| 线性误差 Non-linearity | ±0.05%F.S |
| 滞后误差 Hysteresis error | ±0.05%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.03%F.S |
| 零点温度影响 TC ZERO | ±0.02%F.S/10°C |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C |
| 输入阻抗 Input resistance | 750±10Ω |
| 输出阻抗 Output resistance | 702±5Ω |
| 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 额定温度 Nominal Temp Range | -10~+40°C |
| 工作温度范围 Service Temp Range | -30~+70°C |
| 安全负载 Safe load limit | 150%F.S |
| 破坏负载 Breaking laod | 200%F.S |
| 额定激励电压 Nominal of range excitation | 10~12 V DC |
| 密封等级 Protection Class | IP67 |
| 材料 Materia | 合金钢Alloy Steel |
| 电缆Cable | Length:15.5m |
