旁压式传感器

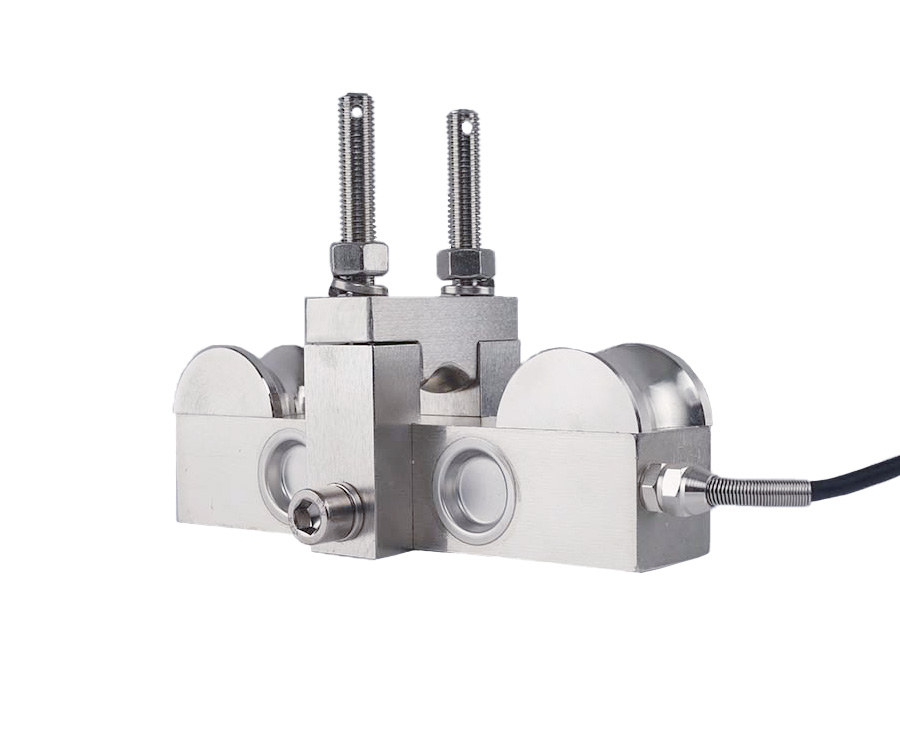

型号/品名：SCNB
适用于钢丝过载报警，超限载控制Suitable for wire overload alarm and overload control4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
受力示意图
适用于钢丝过载报警，超限载控制
Suitable for wire overload alarm and overload control
4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
产品参数表
| 钢丝绳强力(t) | H | B1 | B2 | 钢丝绳直径(mm) | |
| 1 | 95.5 | 40 | 60 | 180 | 6-14 |
| 2 | 10-18 | ||||
| 3 | 12-20 | ||||
| 5 | 135.5 | 40 | 75 | 200 | 16-26 |
| 10 | 174 | 60 | 110 | 260 | 24-36 |
| 额定载荷Rated load | 1、2、3、5、10M | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 灵敏度 Sensitivity | 1.0±0.01mV/V | 工作温度范围 Service Temp Range | -30~+60°C |
| 综合误差 Total error | ±0.05%F.S | 安全负载 Safe load limit | 120%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.01%F.S | 破坏负载 Breaking laod | 150%F.S |
| 零点平衡 Zero balance | ±1%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.01%F.S/10°C | 最大激励电压 Maximum excitation | 15 V DC |
| 灵敏度温度影响 TC SPAN | ±0.01%F.S/10°C | 密封等级 Protection Class | IP67 |
| 输入阻抗 Input resistance | 750±10Ω | 材料 Material | 合金钢Alloy Steel |
| 输出阻抗 Output resistance | 702±5Ω | 电缆Cable | Length: 0.5m Diameter: Ø 6mm |

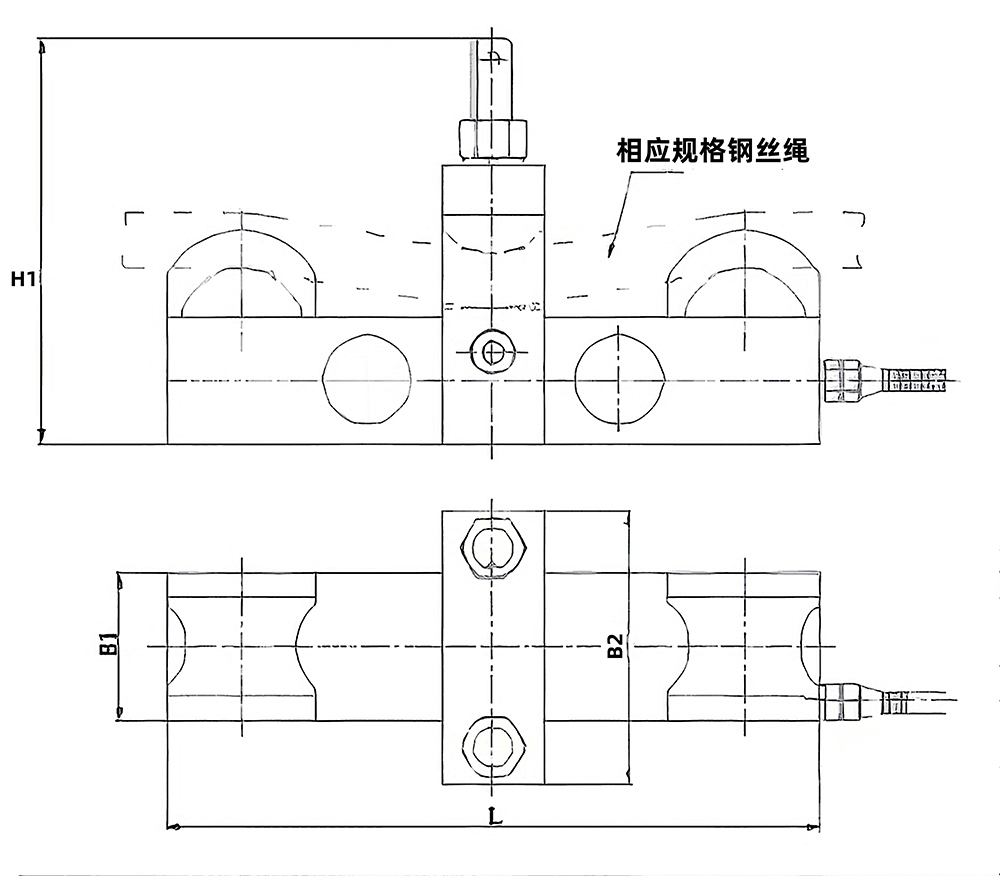

产品尺寸图
