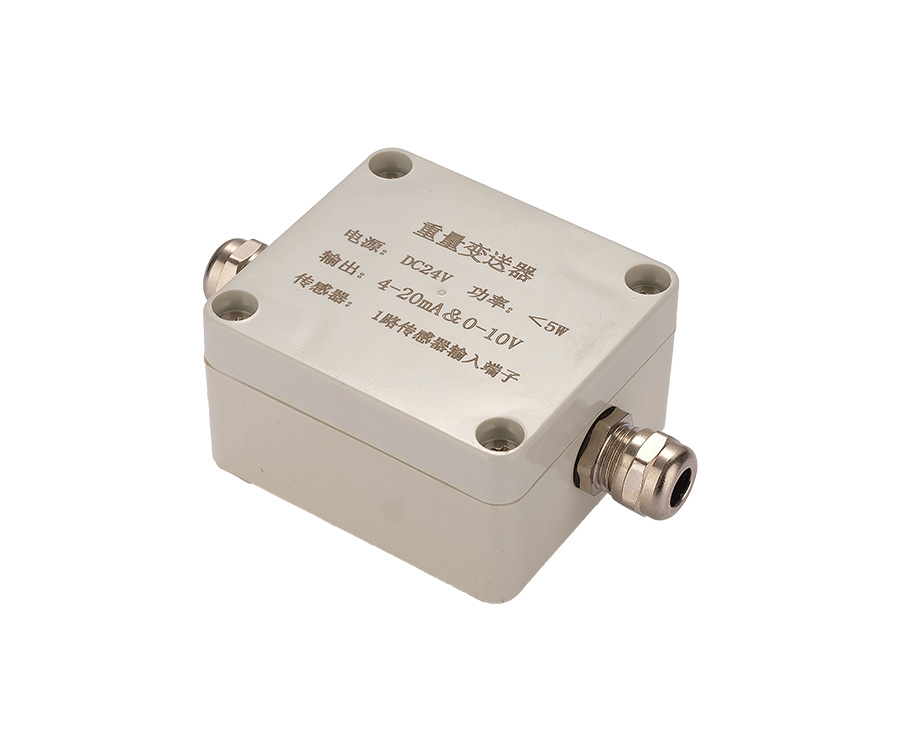

型号/品名：KH06A
壳体厚度35.5MMPRODUCT INTRODUCTION※特点：※ Features:采用ABS塑料密封防水外壳。Adopts an ABS plastic sealed waterproof enclosure.信号输出类型可选择：4~20mA(或0~20mA)、0~5V(或0~10%selectable signal output types: 4~20mA (or 0~20mA), 0~5V (or 0~10V)使用高精度进口电位器调整输出Uses a high-precision import
壳体厚度35.5MM
PRODUCT INTRODUCTION
※特点：
※ Features:
采用ABS塑料密封防水外壳。
Adopts an ABS plastic sealed waterproof enclosure.
信号输出类型可选择：4~20mA(或0~20mA)、0~5V(或0~10%selectable signal output types: 4~20mA (or 0~20mA), 0~5V (or 0~10V)
使用高精度进口电位器调整输出
Uses a high-precision imported potentiometer to adjust the output
TECHNICAL PARAMETER

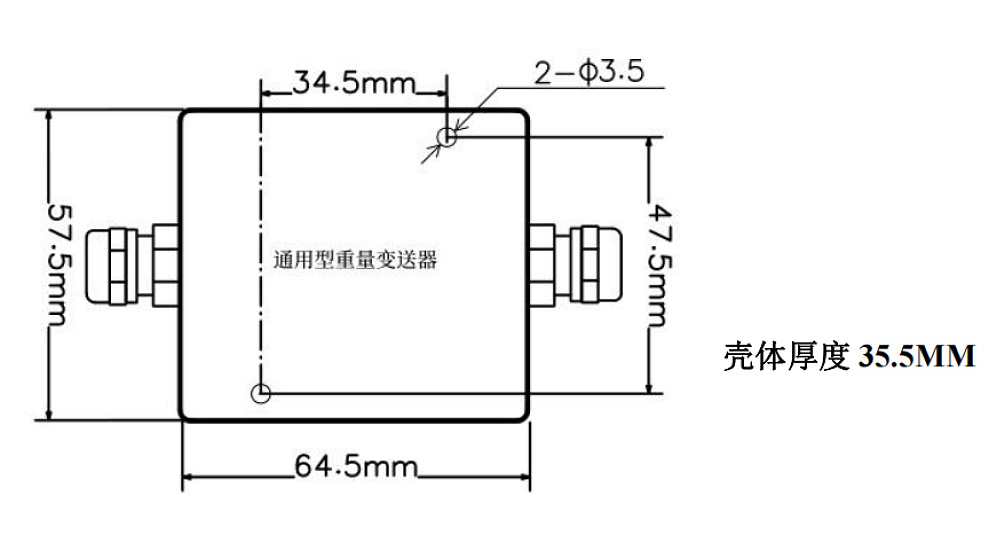

产品尺寸图
| 技术参数 Technical parameter | |||
| 线性精度Linear accuracy | 0.05%FS | 放大倍率Magnification | 电压90~900倍Voltage 90~900 times |
| 综合精度Combined accuracy | 0.2%FS | 电流输出Current output | 最大负载电阻500欧姆Maximum Load Resistance 500Ω |
| 输出范围Output Range | 0~5V、0~10V或4~20mA、0~20mA0~5V, 0~10V, 0~20mA, or 4~20mA | 电压输出Voltage output | 0.06 uV/°C |
| 工作温度范围The operating temperature range | -10°C~50°C | 使用温度为The service temperature is | -30°C~60°C,湿度为10% RH~85% RH,无冷凝-30°C~60°C, Humidity 10%~85% RH, Non-condensing |
| 调零范围Zero adjustment range | 500mA/24VDC | 存贮温度为The storage temperature is | -40°C~85°C,湿度为10% RH~85% RH,无冷凝-40°C~85°C, Humidity 10%~85% RH, Non-condensing |
| 模拟输出零点漂移The applicable sensor sensitivity | 1.0~3.0mV/V | 传感器激励电压Sensor excitation voltage | 直流12V,可驱动1只模拟式传感器(输出电阻≥350)DC 12V, capable of driving 1 analog sensor(Output Resistance ≥ 350Ω) |
| 重量变送器的电源电压范围The power supply voltage range of the weight transmitter | 直流18~24V,最大功耗1.5瓦。重量变送器不可与易产生电源噪声的设备如电机、继电器或加热器等共用一个电源。DC 18-24V, Max Power Consumption 1.5W.The weight transmitter must not share a power supply with devices prone to generating electrical noise, such as motors, relays, or heaters. | ||
